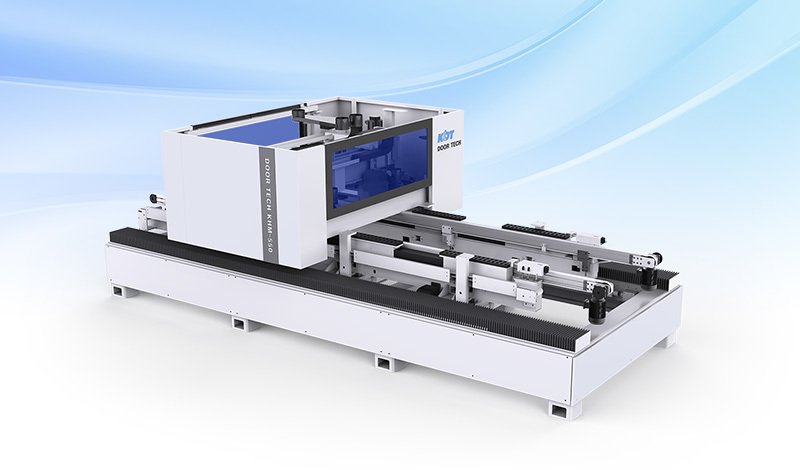

KHM-550-CNC four-side saw
Key words:
Product advantages
| Model：KHM-550 | |
|---|---|
|
Min. working size |
1800*400(mm) |
|
(L*W)Max. working size |
3000*1100(mm) |
|
Working thickness |
30-60mm(mm) |
|
Main saw parameter |
3*7.5(kw) (Ø300*Ø50) |
|
Scoring saw parameter |
3*1.5(kw)(Ø120*Ø30) |
|
Max. moving speed |
40(m/min) |
|
Servo power for movement of saw carriage and crossbeam |
1.5(kw) |
|
Longitudinal saw 0-5" adjustable |
0-5° |
|
Vacuum sucker position |
Servo positioning |
|
Workpiece position |
Centering |
|
Working table height from ground |
960(mm) |
|
Vacuum pump power |
5.5(kw) |
|
OTY of dust outlet |
Ø200*1 |
|
Total power |
41.5(kw) |
|
Machine weight |
5500(KG) |
|
(L*W*H)Machine size |
5120L*2700W*2386H(mm) |
