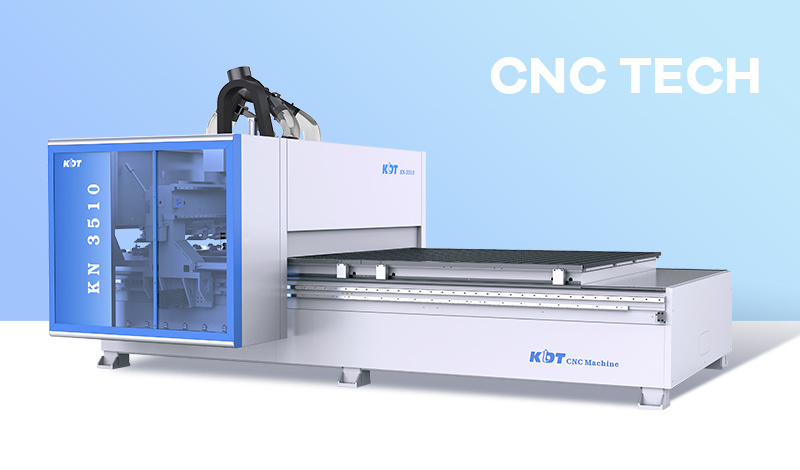

Heavy-duty machine frame KN-3510DE

高刚性机架 KDT 12kW ISO30主轴 10V 椭圆缸径钻组台达总线系统（PC控制）

Product category:

Product Center

Machining Center

3 series machining center

Key words:

High rigidity machine bod KDT 10V oval-diameter 244 m3/h air cool vacuum pump

E-mail: sale@kdtmac.com

Consultation

Product Details

Product advantages

1、High rigidity machine body:,machine frame annealled;stable machine bed, segmented vacuumed zones, provide stronger suction and improve stability.

2、Drill package(standard for D model） KDT 10V oval-diameter drill package Enlarge bottom pressure , ensure drilling depth and efficient drilling

3、Servo Driven With 1.5 KW servo driven motor, Max speed can up to 80 m/min(

4、244 m3/h air cool vacuum pump, large flow rate, enlarge small panel suction capability and prevent it out of guide

Technical parameter

型号：KN-3510DE
最大加工尺寸 Max. Working Size X/Y/Z(mm)	23100*1570
最高速度 Max. Moving SpeedX/Y/Z(m/min)	80/80/30
真空分区 Vacuum Area	4
真空抽速 Vacuum Capacity(m/h)	244*2
吸尘口尺寸及数量 Size & QTY of Dust Hood	φ200*1
刀库 Tool Magazine	12位伺服刀库
总功率 Total Power(kW)	31.6
主轴 Main Spindle	KDT 12kW ISO-30主轴 KDT 12kW ISO-30 Spindle
钻组 Drilling Head	10V
