KS-842HL | High-efficiency cutting, high-end experience and double pusher for rear loading
Release Time:
2022-09-07 18:06
Source:
KS-842HL | High-efficiency cutting, high-end experience and double pusher for rear loading
Core Highlights
Highlights
Double pusher jigsaw sawing
Cross-Cut with Twin Pusher
The two sets of pushers are driven independently and work together to cut two boards of different sizes at the same time, increasing the efficiency by 30%.
Twin Pusher independently drives and Collaboratively works, and 2 workpieces with different size are simultaneously cut, sawing efficiency improves by 30%.
Double feeding mechanism works independently
Twin-feeding mechanism works independently
The double beams are independently driven, sawing and feeding are performed synchronously, and the dry running time is at least 10% lower than that of a single beam, which improves the feeding efficiency.
2 feeding cross beams independently drive, simultaneously saw, and feed, shortening around 10% time in no-load running compared with a single crossbeam, which improves feeding efficiency。
High-speed frequency conversion sawing
Sawing With Frequency Converter
The maximum moving speed is 150m/min.
Max. moving speed up to 150m/min.
The main saw is controlled by frequency conversion, and the speed can be intelligently adjusted according to different boards to achieve high-quality sawing.
Main saw controlled by frequency converter automatically adjust speed according to the thickness of workpiece, realizing a best sawing quality.
important features
Characteristic

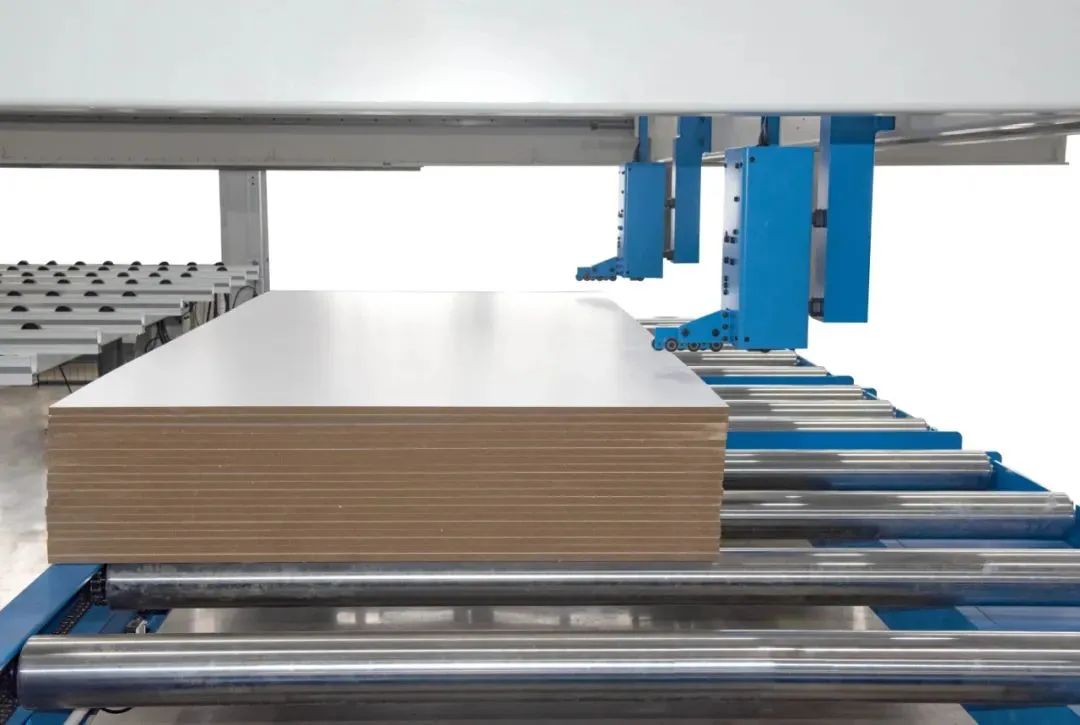

Fully automatic back feeding
Auto Rear-loading
High-precision positioning and lifting, the thickness of the push plate is as small as 8mm.
High precision position, min. thickness of workpiece is 8mm.
Optional pairing with RGV hydraulic table
Forklift feeding, support docking RGV automatic feeding.
Workpiece feeds into lift table by forklift and available to feed with automatic RGV.

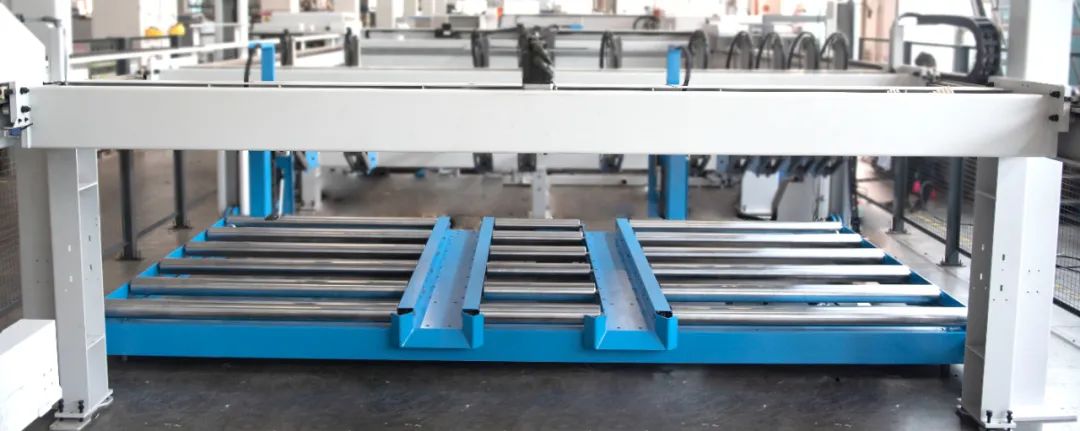

Large size hydraulic platform
Hydraulic Lift table
Heavy-duty hydraulic control, the maximum load capacity can reach 4 tons, safe and stable (roller direction optional).
The hydraulic-controlled lift table can bear 4000KGS weight capacity, safe and stable (Roller direction optional).
small saw electric adjustment
Scoring Saw Adjustment
The operation is intuitive and convenient.
Intuitive and simple operation panel.
Quickly fine-tune sawing straightness and scribing depth.
Quickly adjust the straightness of sawing and depth.
Self-developed control system
Self-developed control system PreSize
The operation is simple, and it can record the production status and query the production progress in real time.
Intuitive and simple operation, real-time checks and records on production progress.
technical parameter
Parameter
