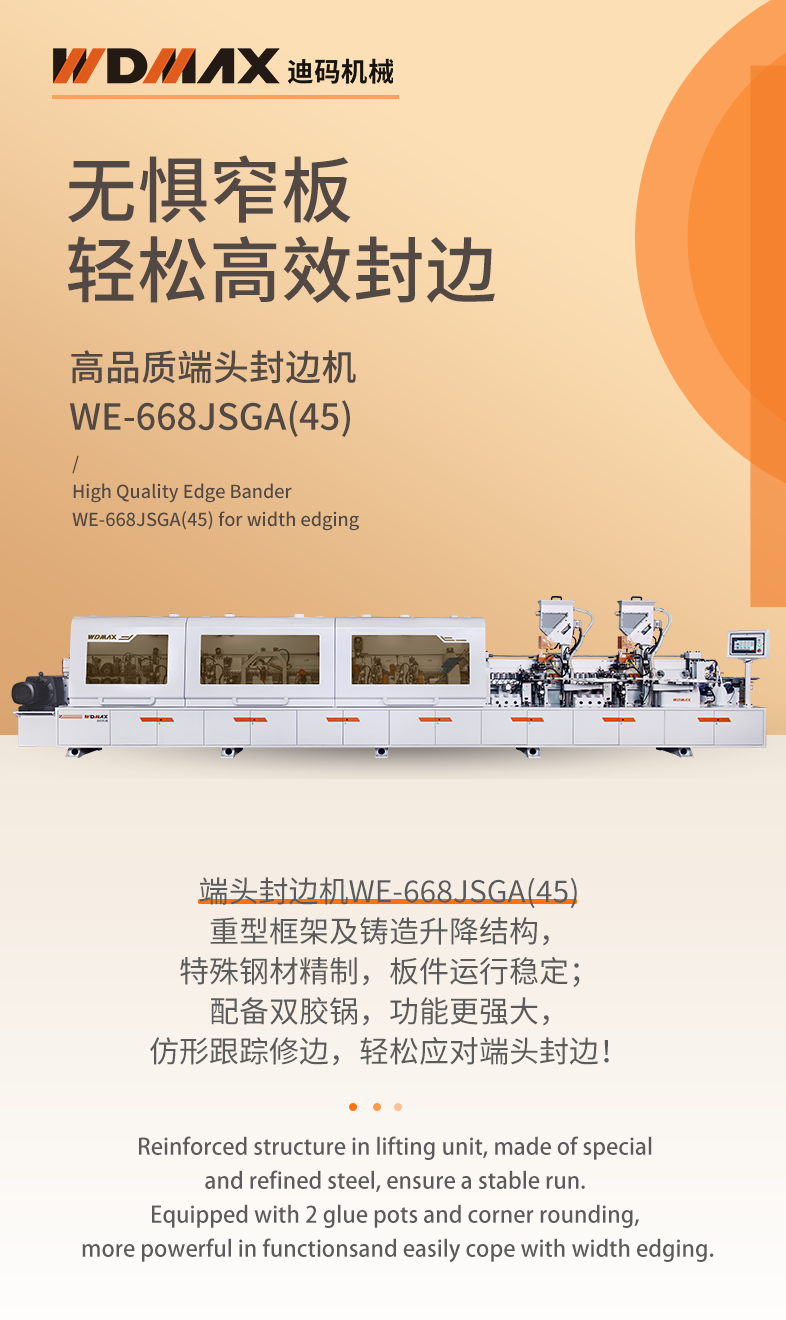

No fear of narrow boards, easy and efficient edge banding: WE-668JSGA(45)
Release Time:
2022-07-05 16:13
Source:
technical parameter
Parameters
|
Feed rate Feeding Speed（m/min） |
15-23 |
|
Edge banding thickness Tape thickness（mm） |
0.4-3 |
|
Work piece thickness Panel Thickness（mm） |
10-60 |
|
Work piece length Panel Length |
End sealing W≥40, L≥200 |
|
Workpiece width Panel Width |
long edge banding 80>W≥45, L greater than or equal to 300 |
|
The smallest version size edge size is the long side Min.Panel Size（mm） |
|
|
Vacuum cleaner size and quantity Size&QTY of Dust Hood |
100*3+125*5 |
|
total power Total Power（kW） |
29.55 |
|
Dimensions Overall Size Length (L) Width (w) Height (H) (mm) |
9130L*990W*1960H |
