One step ahead, take the lead | Six-sided CNC drilling center DN-612MR

Release Time:

2022-07-05 15:46

Source:

Core Highlights

Control
System UpgradeControl System Upgrade

Adopt EtherCAT bus control system, microsecond level response speed.
Applies EtherCAT bus control, microsecond response speed.

Software Technology Upgrade
Software Upgrade

Multi-thread synchronous operation, optimized mechanism action coordination, efficient and stable drilling processing.
Multithread and synchronous run as well as optimization of motioncoordination make drilling in more efficiency and stability.

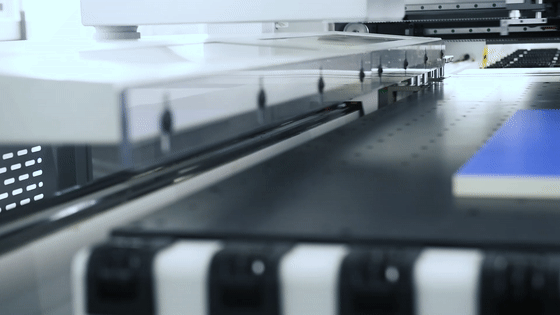

Gripper maximum speed 135m/min
Clamps Max.Moving Speed 135 m/min

Fast positioning processing, improve processing efficiency.
.Fast positioning for drilling improves efficiency.coordination make drilling in more efficiency and stability .

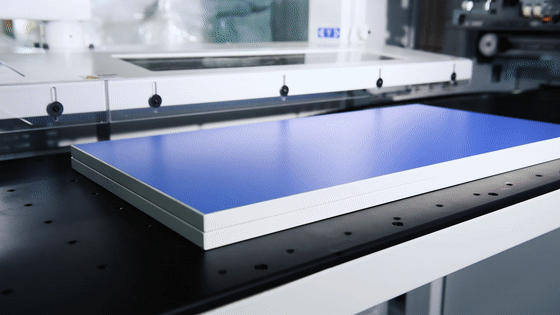

Dilling on Small Boards

Satisfy drilling on small boards.coordination
make drilling in more efficiency and stability.

**Min.workpiece size: 70* 35mm**

New

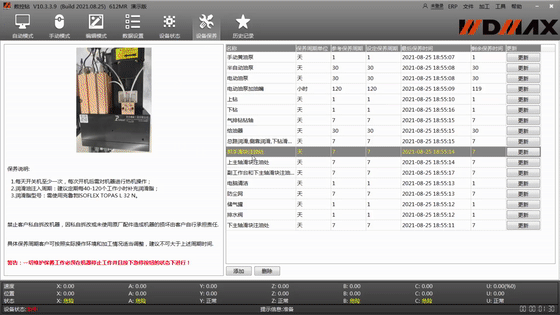

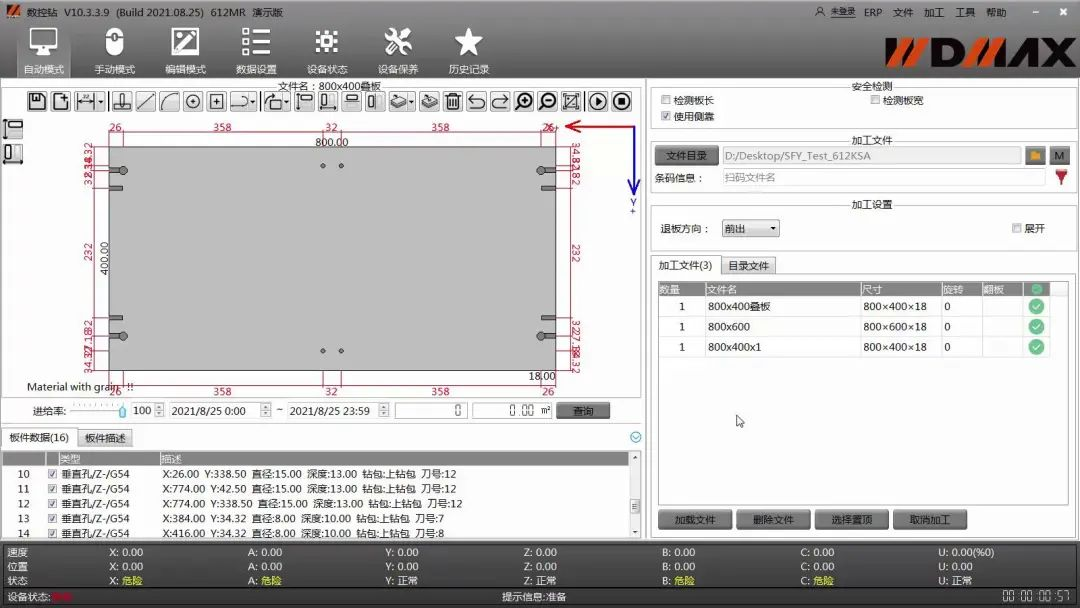

Version Software with Comprehensive Functions New Version Software with Comprehensive Functions

Optimal drilling path design, efficient processing.
Optimal diling path makes machining in high efficiency.

Real-time statistics of processing records.
Real-time statistics of machining records.

configuration features

Long Clamp
Stroke Equipped

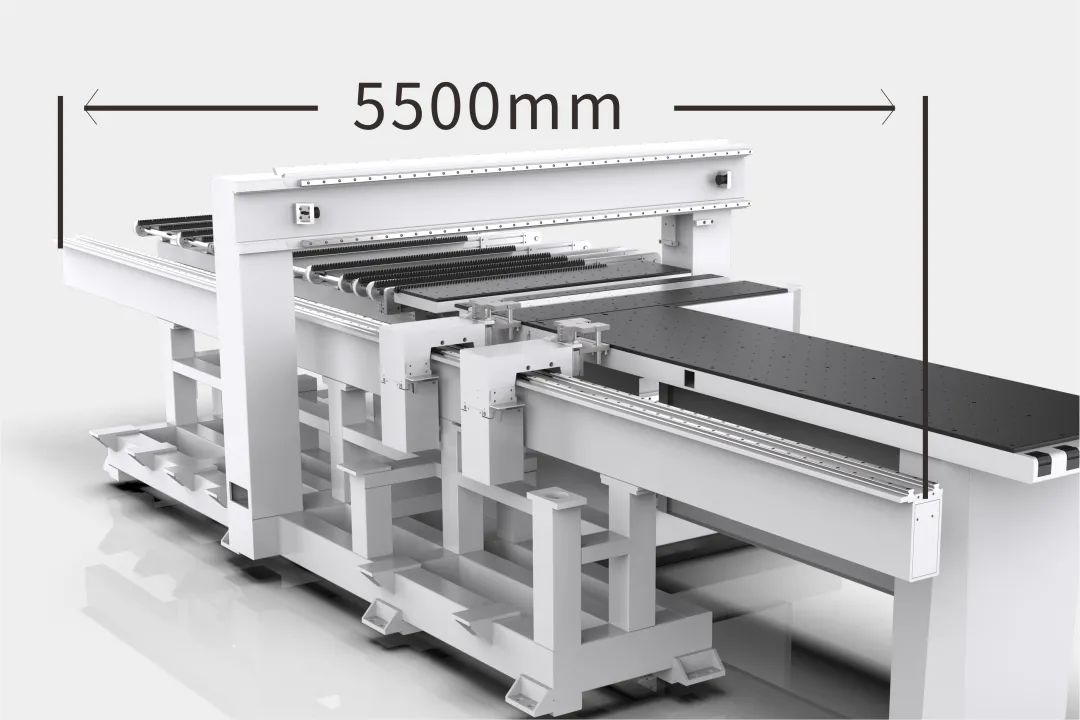

The guide rail of the gripper is 5500mm, and the long plate can be processed at one time;
the number of times of changing hands is reduced, and the processing efficiency is improved. The main structural parts are annealed.
Clamp Stroke: 5500mm, One-time feeding and machining with 2800mmlong panel, reducing times in clamp changes and improving drilling efficiency.

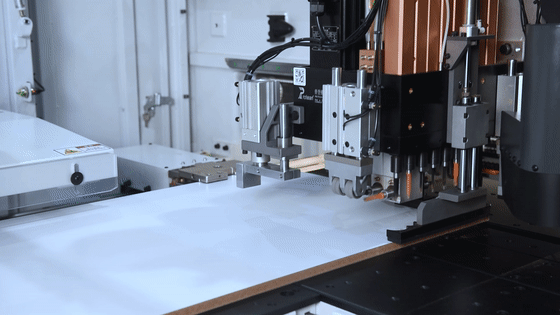

Dilling Speed Controlled by Inverter

Quickly switch the drilling speed according to the size of the hole, improve the drilling quality and reduce the edge explosion .
Fast change diling speed according to holes diameter, improving dilling quality and reducing burst on panel edge. long panel, reducing times in clamp changes and improving drilling efficiency.

Pressurization
System Configured

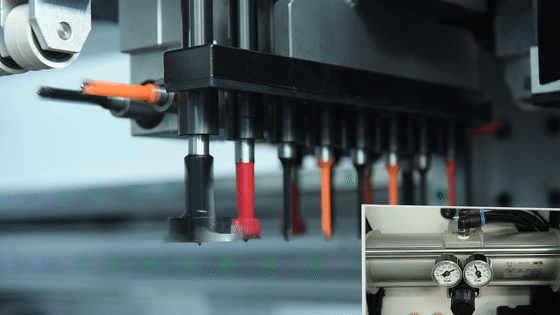

Increase drilling air pressure to ensure consistent drilling depth and improve drilling efficiency.
Increase the drilling pressure, ensure Hole-depth consistent, and improve drilling efficiency. long panel, reducing times in clamp changes and improving drilling efficiency.

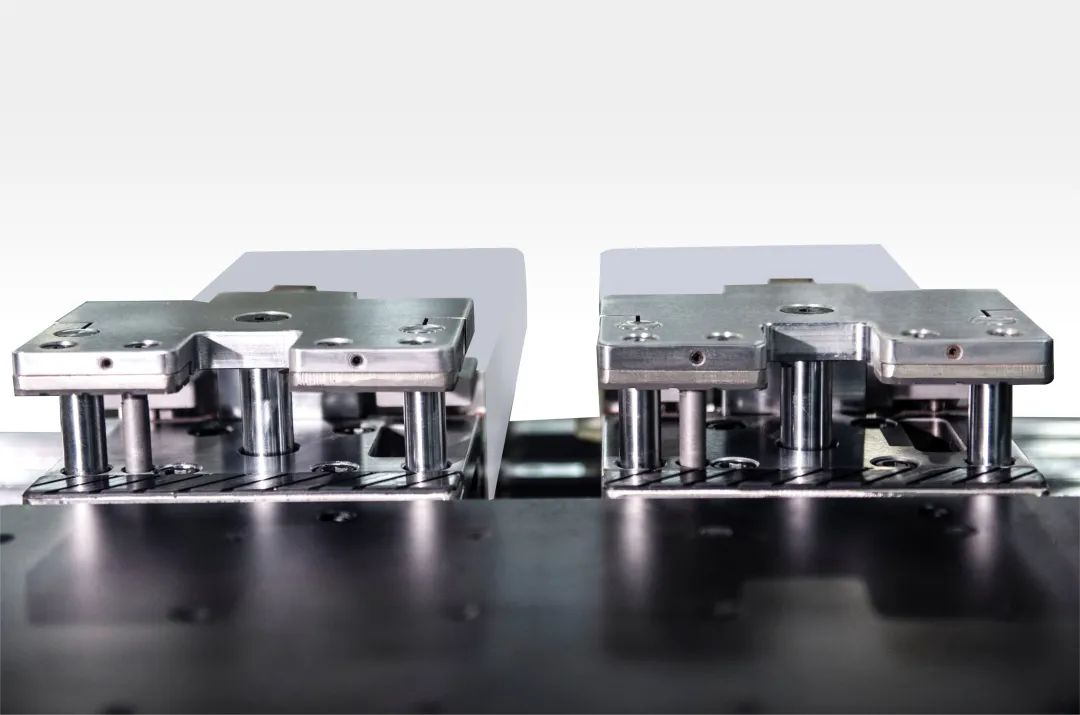

Clamps with Self-cleaning System (Patented )

Clean the dust on the surface of the plate and improve the processing accuracy.
Clean off dust on panel surface, and improve milling accuracy.

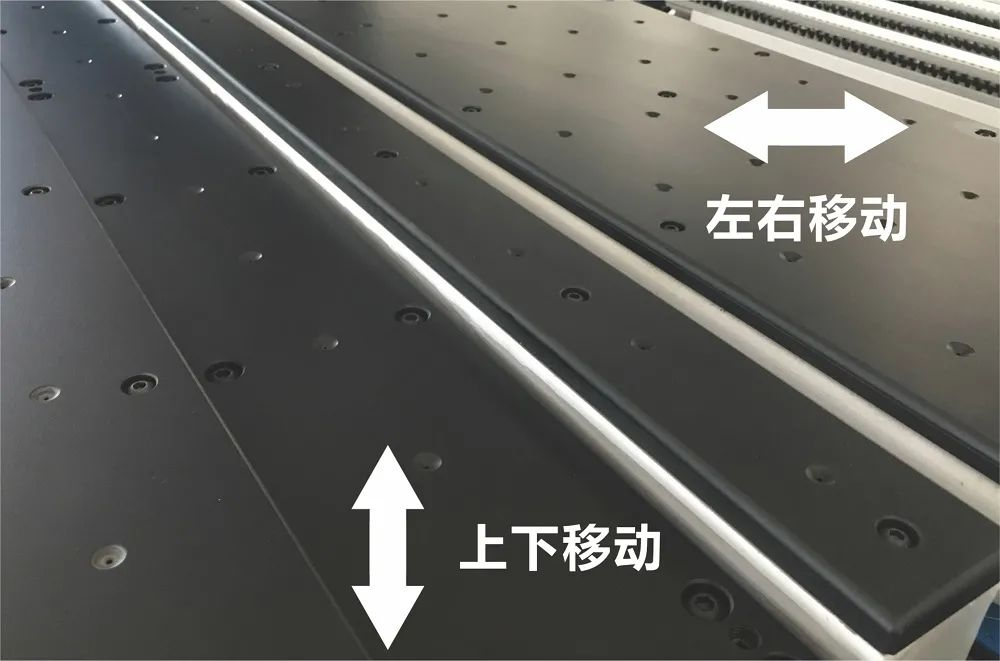

Air-float Worktable (Patented )

Intelligent support for drilling, improving drilling accuracy, reducing scratches and plate collisions.
Intelligently support drilling machining, improve drilling accuracy, reduce panel scratches and hit against.

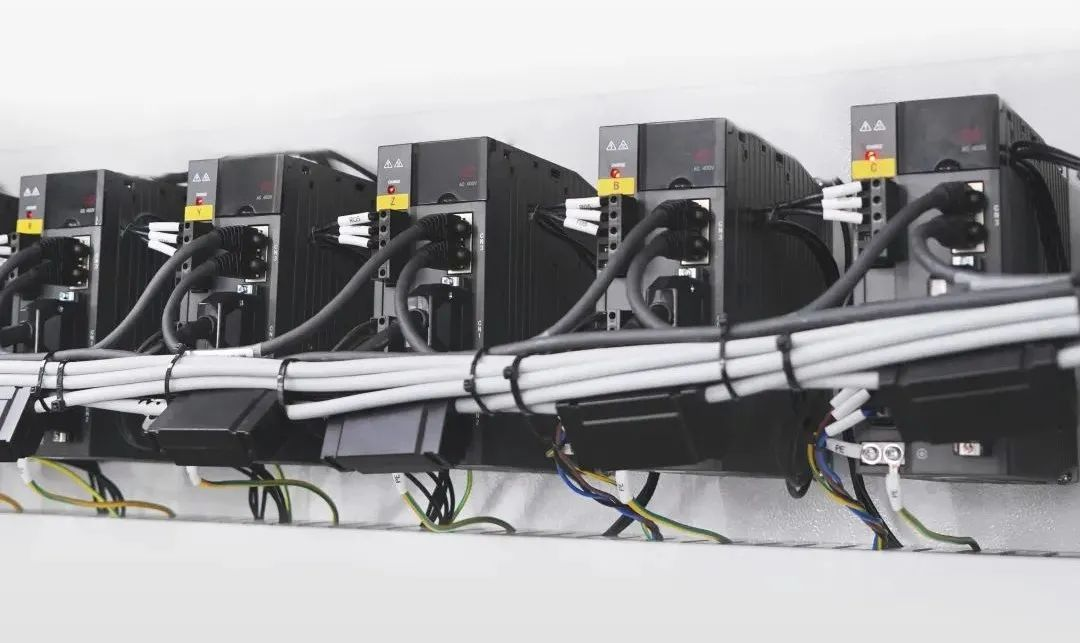

Absolute
Value Servo Bus Control System

There is no need to return to the origin to operate when starting up, and it can be used immediately after power-on.
No need for homing, and machine can be used immediately power on. reduce panel scratches and hit against.

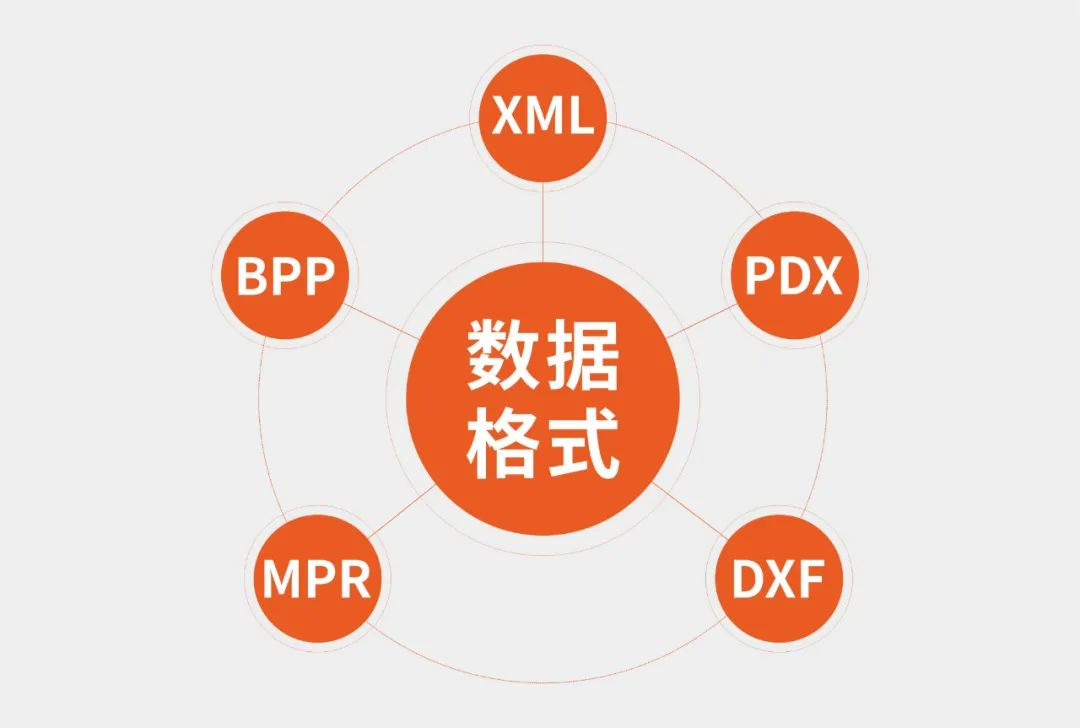

Compatible with Multiple Data Formats
Compatible with Multiple Data Formats

Computer operation, convenient and efficient.
Convenient and efficient operation. reduce panel scratches and hit against.

technical parameter

model

Model

DN-612MR

Work piece length

Panel Lenght（mm）

70-2800

Workpiece width

Panel Width（mm）

35-1200

Work piece thickness

Panel Thickness（mm）

9-60

Gripper maximum speed

Max Speed of Gripper（m/min）

135

Y/Z axis maximum speed

Max Speed of Y/Z-Axis（m/min）

75/30

Number of tools

Number of Drills

Upper vertical drilling 12V + horizontal drilling 8H + lower vertical drilling 9V

Spindle power

Power of Spindle（kW）

2*3.5

total power

Total Power（kW）

20.65

Dimensions length * width * height

Overall Size L*W*H（mm）

5675L*2480W*2190H

Dimensions and quantity of suction port

Size&QTY of Dust Hood

200*1

150*1

No fear of narrow boards, easy and efficient edge banding: WE-668JSGA(45)

none

No fear of narrow boards, easy and efficient edge banding: WE-668JSGA(45)

none
